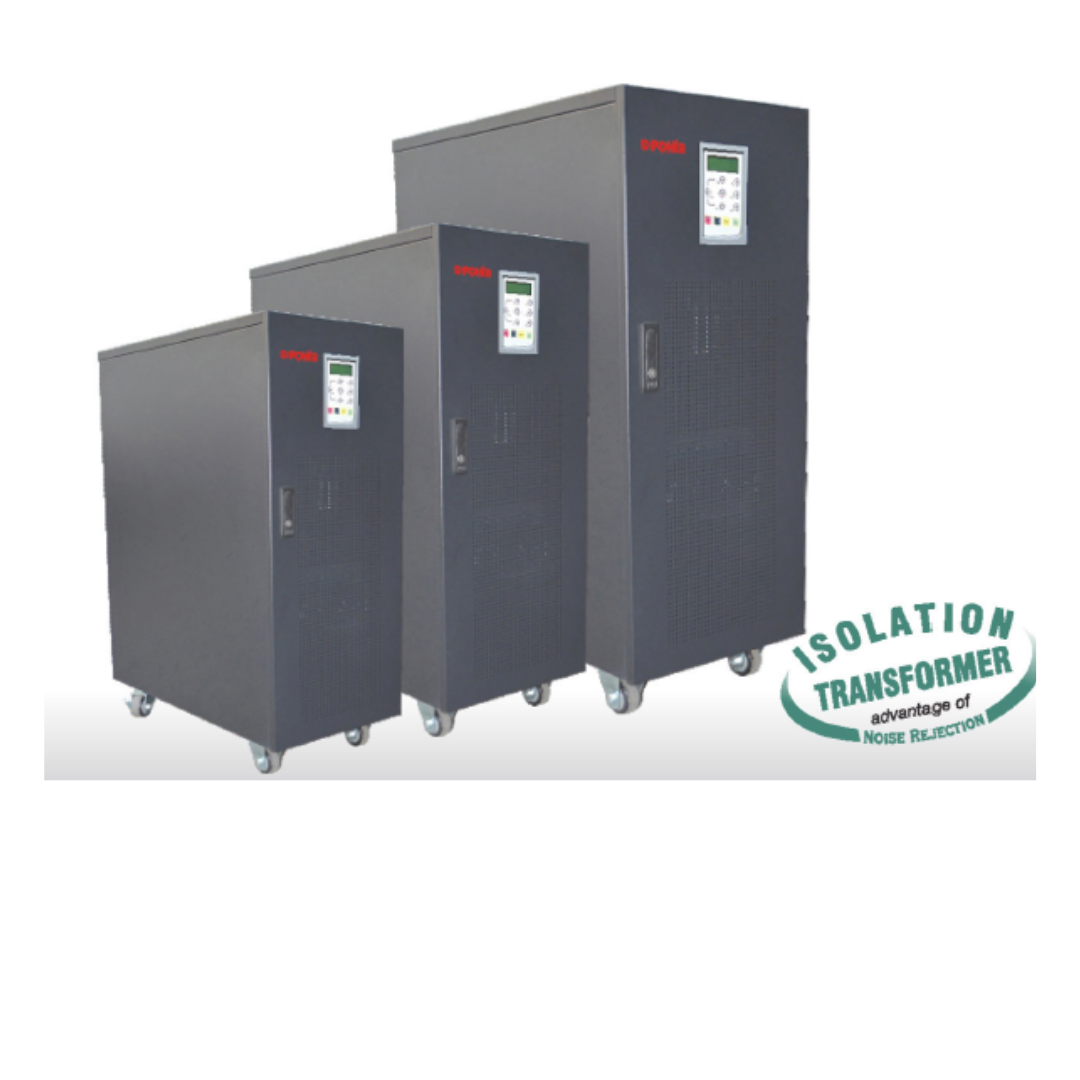

S-Power GP Series Voltage Stabilizer - GP1115L16

DS Series
3-15KVA
1:1 phase

High Reliability Design
Double Conversion on-line Design which makes the output a pure sine wave source with tracking frequency, phase-lock and voltage regulation, noise suppression, and without power fluctuation interference,providing the load with more comprehnsive protection.
Zero transfer time of output,satisfies high standard power requiment of precision equipment.
Modular design and dual-CPU control, high reliability and stability ensure the safe operation and high efficiency.

Strong Protection for load
Built-in isolation tranformer strong anti-interfererence ability, provides more comprehesive protection.

Battery cold start function
The UPS can be start directly by battery group when no utility power.

Conversion Type
TDouble Conversionn Special Design UPS
AC-DC, DC-AC

Wide input range
The range of AC input voltage is 380± 25% thereby it reduces the battery using frquency and greatly extending the battery life.Wide input frequency range,ensure all types of generator compatible.

Optimization of high-performance battery
Adapt Intelligent battery management (ABM) technology, thus it extends battery life and reduces battery maintenance times.
Advanced CC (Constant current ) / CV (Constant Voltage) Auto-conversion charging technology maximizes the activation of cells, thus it saves the charging time and extending the battery life.

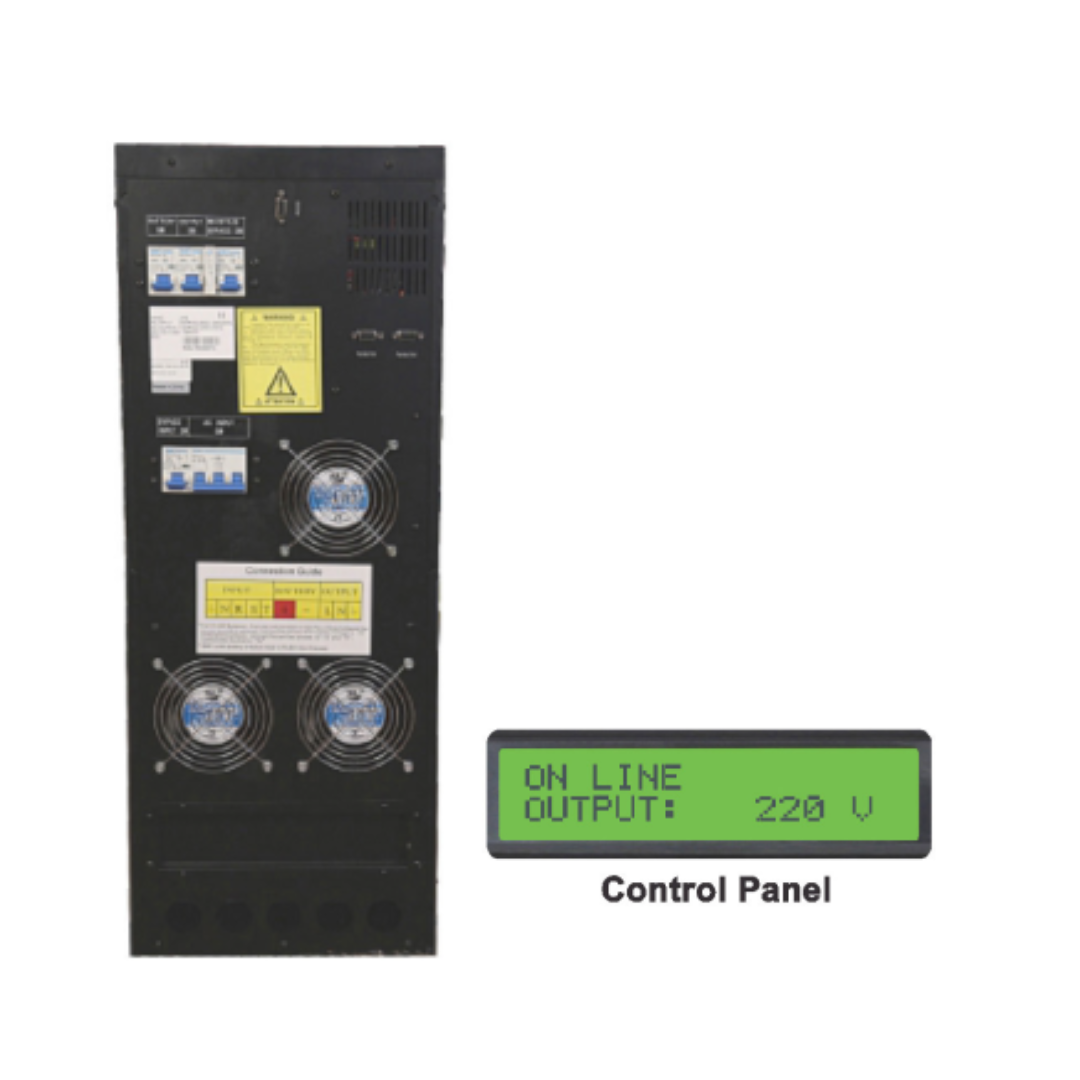

User-Friendly Network Management
Commnication with computer can be realized by RS232 with corresponding monitoring software. The Variouse parameters can be shown on the communication interface.

External SNMP adapter. The UPS with remote network managment capability can provide real-time data for communicationand management through a varirty of network management systems.

Comprehensive and reliable protection
Self-diagnosis function before start-up, avoid the risks that the failure may lead to.
