About Daikin 1.5 Ton One Way Super Inverter Ceiling Cassette AC - FKCAQ50
Introduction
The FKCAQ Series is a new-generation 1-Way ceiling cassette AC designed with a sleek, modern look and compact dimensions. It features a low-height indoor unit, making it ideal for rooms with limited ceiling space.
Equipped with Inverter Technology and R-32 refrigerant, it ensures efficient and eco-friendly cooling.
Its smooth Automatic Air Swing, quiet operation, and advanced Drain Pump Mechanism enhance overall comfort. Perfect for homes, offices, and commercial spaces needing reliable cooling with minimal design impact.
Features
-
Compact & Elegant Design Indoor Unit •
-
Low Ceiling Height Indoor Unit – 166mm •
-
Automatic Air Swing •
-
Swing Pattern Selection •
-
5-Step Fan Speed •
-
High Ceiling Application •
-
Night Quiet Operation •
-
In-built Drain Pump Mechanism (up to 700mm Lift) •
-
Pre-charge for up to 7.5m •
-
Self-Diagnosis Function •
-
Weekly Schedule Timer •
-
Option of PM 2.5 Filter with standard Pre Filter for maintaining better IAQ •
-
Anti-Corrosion treatment on Outdoor heat exchanger Copper tubes (Benzotriazole – BTA oil) •
-
Over-Voltage PCB •
-
On/Off Timer •
-
Auto Swing •
-
Program Mode–Cool, Dry, Auto Mode •
-
Auto Restart •
About Daikin 1.5 Ton One Way Super Inverter Ceiling Cassette Air Conditioner - FKCAQ50
| General Performance |
| Series |
FKCAQ Series |
| Brand |
DAIKIN |
| Indoor Model No |
FKCAQ50AV16 |
| Outdoor Model No |
RZVFQ50ARV16 |
| Type |
1-Way Ceiling Cassette (Inverter) |
| Cooling Capacity (kW) |
5.0 / 2.5 (1.8 ~ 5.0) |
| Cooling Capacity (BTU/hr) |
17,060 / 8,530 (5,142 ~ 17,060) |
| Power Consumption (Rated) |
1,650 W |
| Annual Power Consumption |
943 kWh |
| ISEER / Star Rating |
4.10 / Inverter 3 Star |
| Power Supply |
1 Ph, 230V, 50Hz |
| Modes |
Cool, Dry, Auto, Fan Mode |
| Auto Restart |
Yes |
| Indoor Unit (IDU) |
| Front Panel Color |
White |
| Indoor Dimensions (H × W × D) |
145 × 1210 × 523 mm |
| Indoor Panel Dimensions |
41 × 1390 × 595 mm |
| Indoor Unit Weight |
20 kg |
| Indoor Panel Weight |
6.6 kg |
| Panel Model Name |
BYKQ63AHW / BYKQ63AHS / BYKQ63AW |
| Panel Colors |
White + Dark Grey
Silver + Dark Grey
White + White |
| Air Flow Rate (m³/min) |
12.3 / 11.6 / 10.7 / 10.3 / 9.8 |
| Air Flow Rate (CFM) |
436 / 410 / 379 / 364 / 348 |
| Sound Level |
38 / 36 / 35 / 34 / 33 dB(A) |
| Outdoor Unit (ODU) |
| Casing Colour |
Ivory White |
| Compressor Type |
Swing |
| Refrigerant |
R-32 |
| Refrigerant Charge |
1.04 kg |
| ODU Dimensions |
595 × 845 × 300 mm |
| Machine Weight |
39 kg |
| ODU Sound Level |
54 dB(A) |
| Piping & Installation |
| Max. Interunit Piping Length |
20 m |
| Max. Installation Level Difference |
15 m |
| Piping (Gas / Liquid) |
15.9 mm / 6.35 mm (5/8" / 1/4") |
| Operating Temperature (Cooling) |
21°C ~ 52°C |
Now, Get 1.5 Ton One Way Super Inverter Ceiling Cassette Air Conditioner - FKCAQ50 at ACGHAR.com
Extra Charges to Install Daikin 1.5 Ton Ceiling Cassette Air Conditioner
| S.N. |
Particulars |
Qty |
Price |
| 1 |
Installation Charge of 1.5 TR Ceiling Cassette AC |
Per Set |
Rs. 5,000.00 |
| 2 |
Extra Copper Piping with Insulation & Communication Cable |
Per Foot |
Rs. 900.00 |
| 3 |
Crocodile Drain Pipe |
Per Meter |
Rs. 350.00 |
| 4 |
CPVC Drain Piping (If Required) |
Per Foot |
Rs. 210.00 |
| 5 |
Metal Bracket for Outdoor Unit (If Required) |
Per Set |
Rs. 2,00.00 |
Note:
1) The price of AC is inclusive 13% VAT and to install AC other charges are exclusive VAT.
2) Chipping for concealed piping: Rs. 200 per running foot (plastering/finishing excluded; to be managed by owner).
3) If there needs to do ducting pipe, CPVC ducting charge will be Rs.350 per running foot.
4) If copper piping needs to be supported using a GI cable tray (up to 6” channel), the cost will be charged at NPR 600 per foot.
5) If there need to hang outdoor or indoor unit by modifying with fabrication or civil work will be extra charged.
6) Electric input power point & drain outlet point should manage near AC point by client self. Extra charges will be added if service provided by us.
7) Free shipping at major cities of Nepal.
8) Warranty will be provided as per brand rules. (Terms and Conditions applied)
Order Now

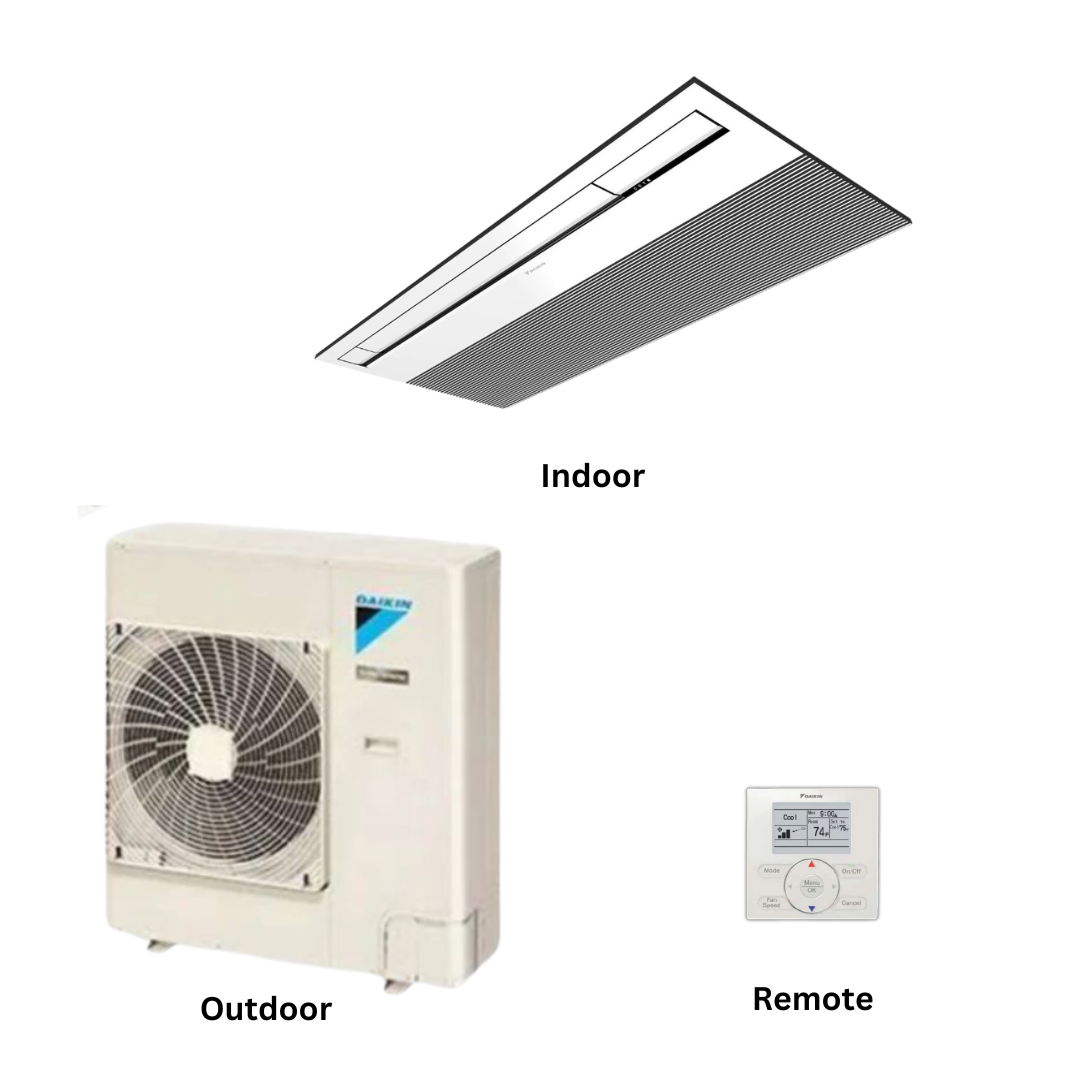

Included in the Box
- Indoor Unit
- Wireless Remote Controller
- Outdoor Unit
Disclaimer: Product image may vary slightly.
