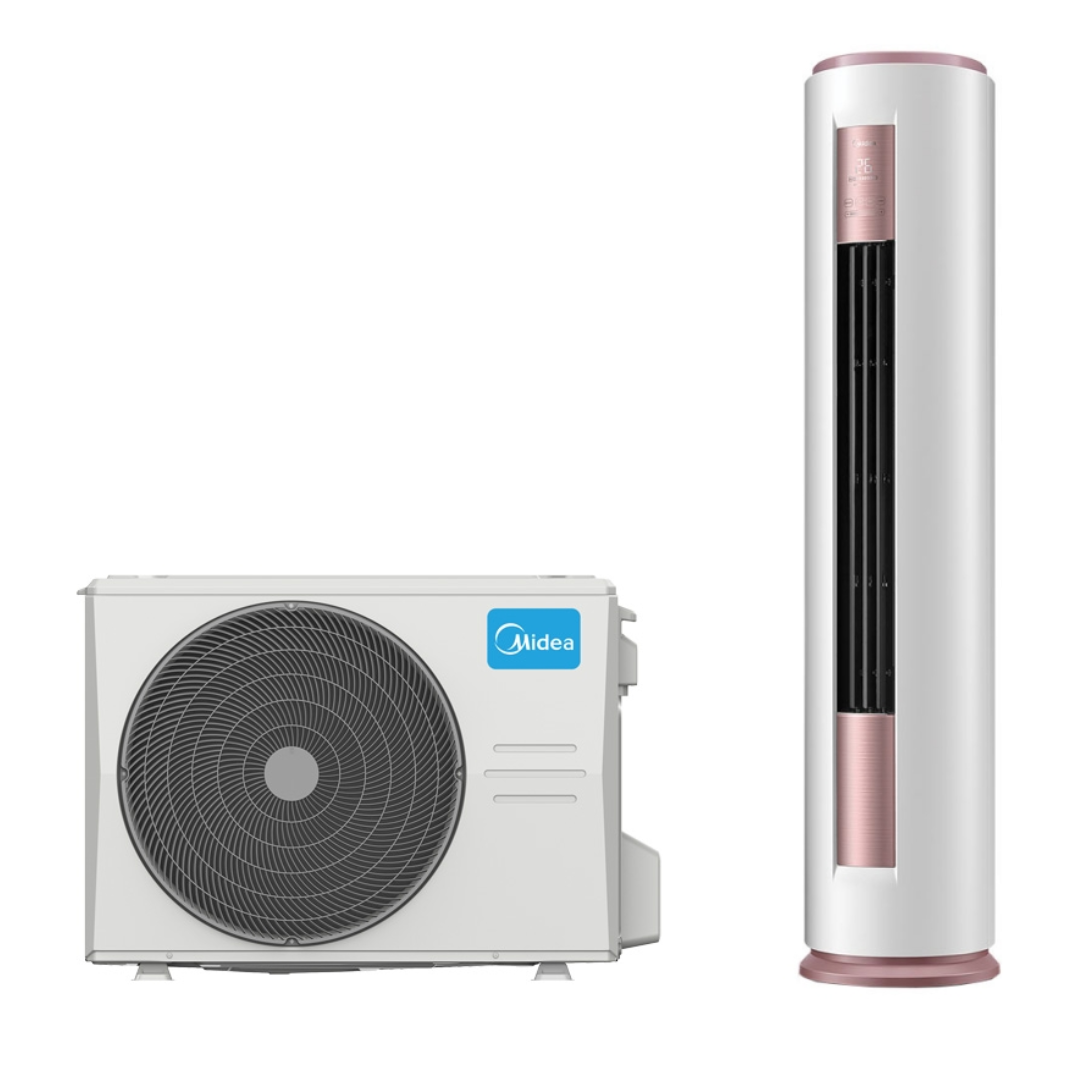

Midea 2.0 Ton Floor Standing Inverter Air Conditioner (Round Shape)
Midea column air conditioners are an excellent solution for heating or cooling rooms of complex shape, where it is not possible to install conventional split systems. The body of the block is cylindrical in original design with a vertical air duct. For convenience of work with system above the touch display for management of the conditioner settles down. Midea column air conditioners are available with a high-performance mode that allows you to heat or cool even the largest room in the shortest possible time. Also, the user will not need to re-set the parameters after an unexpected malfunction, this happens automatically during the system restart.
Automatic restart In the event that the air conditioner stops working unexpectedly due to a power failure, immediately after it resumes, it will automatically restart and start working with the mode set before the power failure. Low temperature putty The outdoor unit of the air conditioner can operate in heating mode without any problems at very low outside temperatures. Golden Fin coating on the heat exchanger The Golden Fin coating is more resistant to oxidation and corrosion than the ordinary Blue Fin coating. Golden Fin effectively prevents the growth and spread of bacteria and improves resistance to corrosive elements. Freon leakage reporting The indoor unit of the air conditioner detects an error code “EC” which will be displayed and stop automatically when Freon leakage is detected. This will protect the air conditioner compressor from damage caused by high temperature when the refrigerant leaks.
Extra Charges to Midea Install 2.0 Ton Floor Standing Air Conditioner
| S.N. |
Particulars |
Qty |
Price |
| 1 |
Installation Charge of 2.0 TR Floor Standing Air Conditioner |
Per Set |
Rs. 5000.00 |
| 2 |
Extra Copper Piping with insulation & Communication Cable |
Per Foot |
Rs. 1000.00 |
| 3 |
Crocodile Drain Pipe |
Per Meter |
Rs. 350.00 |
| 4 |
CPVC Drain Piping (If required) |
Per Foot |
Rs. 210.00 |
| 5 |
Metal Bracket for Outdoor Unit (If required) |
Per Set |
Rs. 5000.00 |
Note
1) The price of AC is inclusive 13% VAT and to install AC other charges are exclusive VAT.
2) Chipping for concealed piping: Rs. 200 per running foot (plastering/finishing excluded; to be managed by owner).
3) If there needs to do ducting pipe, CPVC ducting charge will be Rs.350 per running foot.
4) If copper piping needs to be supported using a GI cable tray (up to 6” channel), the cost will be charged at NPR 600 per foot.
5) If there need to hang outdoor or indoor unit by modifying with fabrication or civil work will be extra charged.
6) Electric input power point & drain outlet point should manage near AC point by client self. Extra charges will be added if service provided by us.
7) Free shipping at major cities of Nepal.
8) Warranty will be provided as per brand rules. (Terms and Conditions applied)
Order Now
Included in the Box
Disclaimer: The product image may be slightly different from the original.

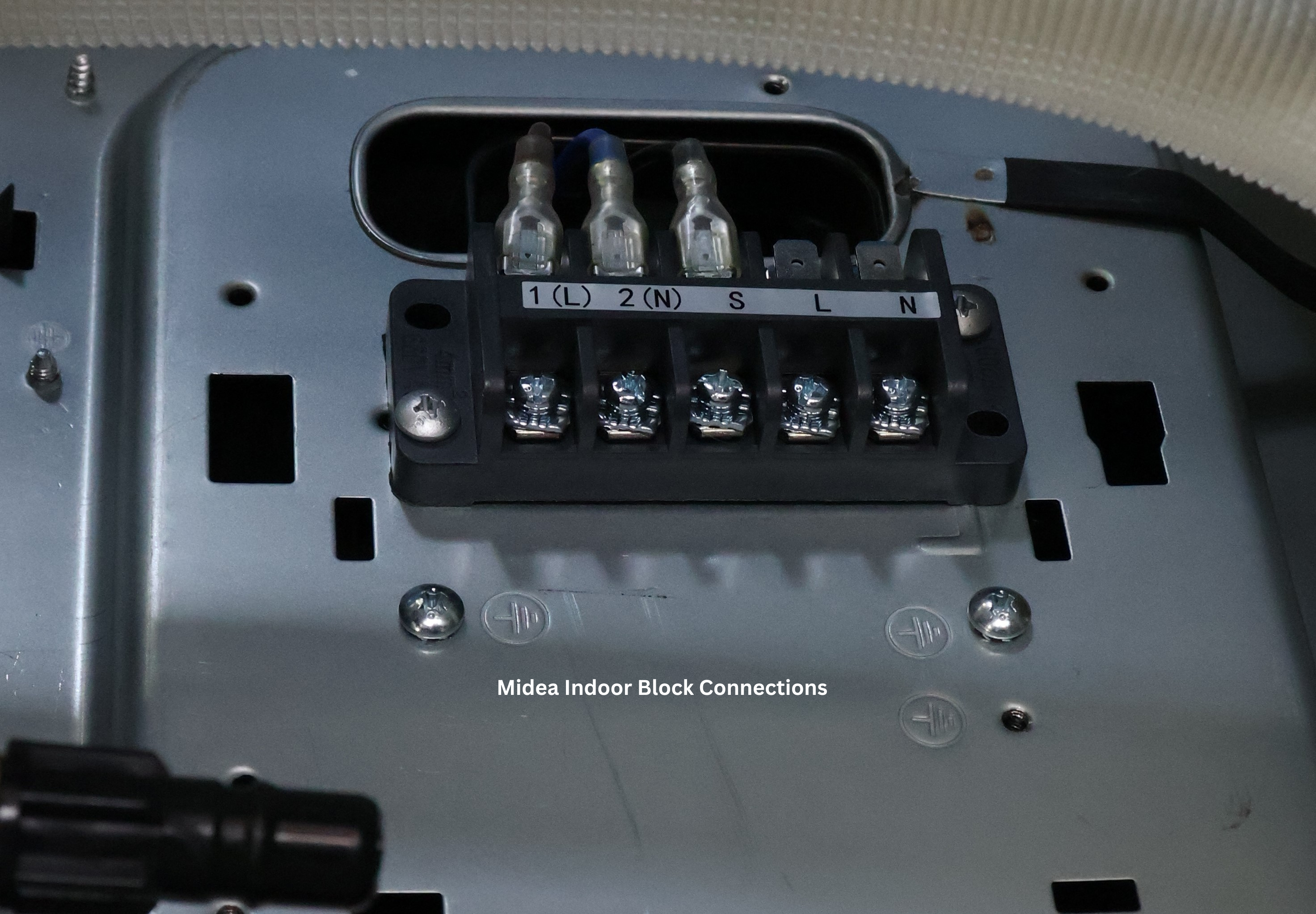

Midea Terminal Block Connection
The terminal block shown in the image is typically used for both power supply and communication between the indoor and outdoor units. The labels are interpreted as follows:
1) 21(L) and 2(N): These are interconnecting terminals that connect the indoor unit to the outdoor unit. 1(L) refers to the "Live" or "Line" connection, and 2(N) refers to the "Neutral" connection.
2) S: This terminal is for the signal or communication cable between the indoor and outdoor units. It is critical for the system to transmit operational data; some manuals specify that this wire must not be switched.
3) L and N: These terminals are generally used for the main power supply input. In many configurations, the indoor unit can be powered directly from a local fuse spur using these terminals.
4) Grounding Symbol ($\oplus$): Located below the terminal block on the metal chassis, these screws are for the earth/ground wire connection to prevent electrical shock.

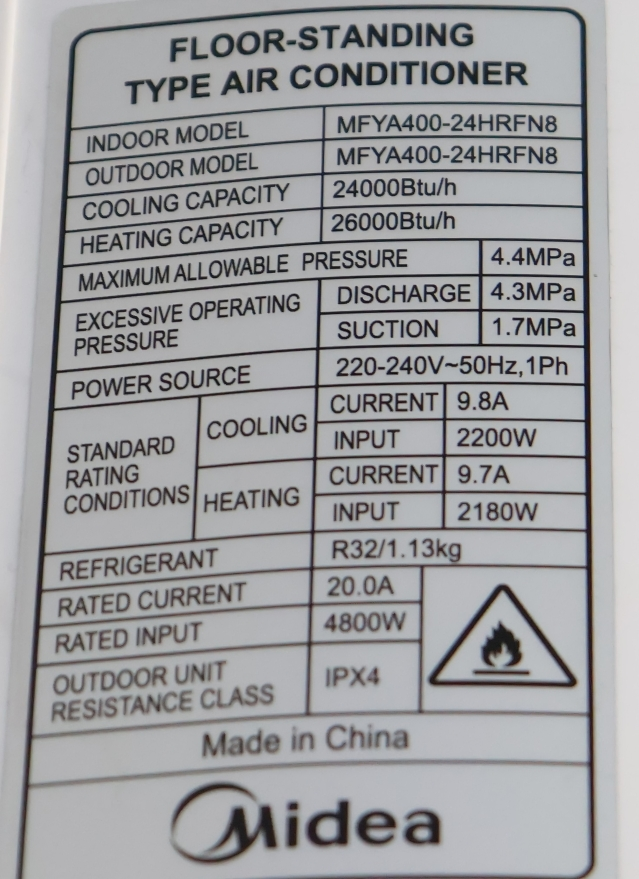

Midea Indoor Specification
