| Brand |
UNV |
| Model |

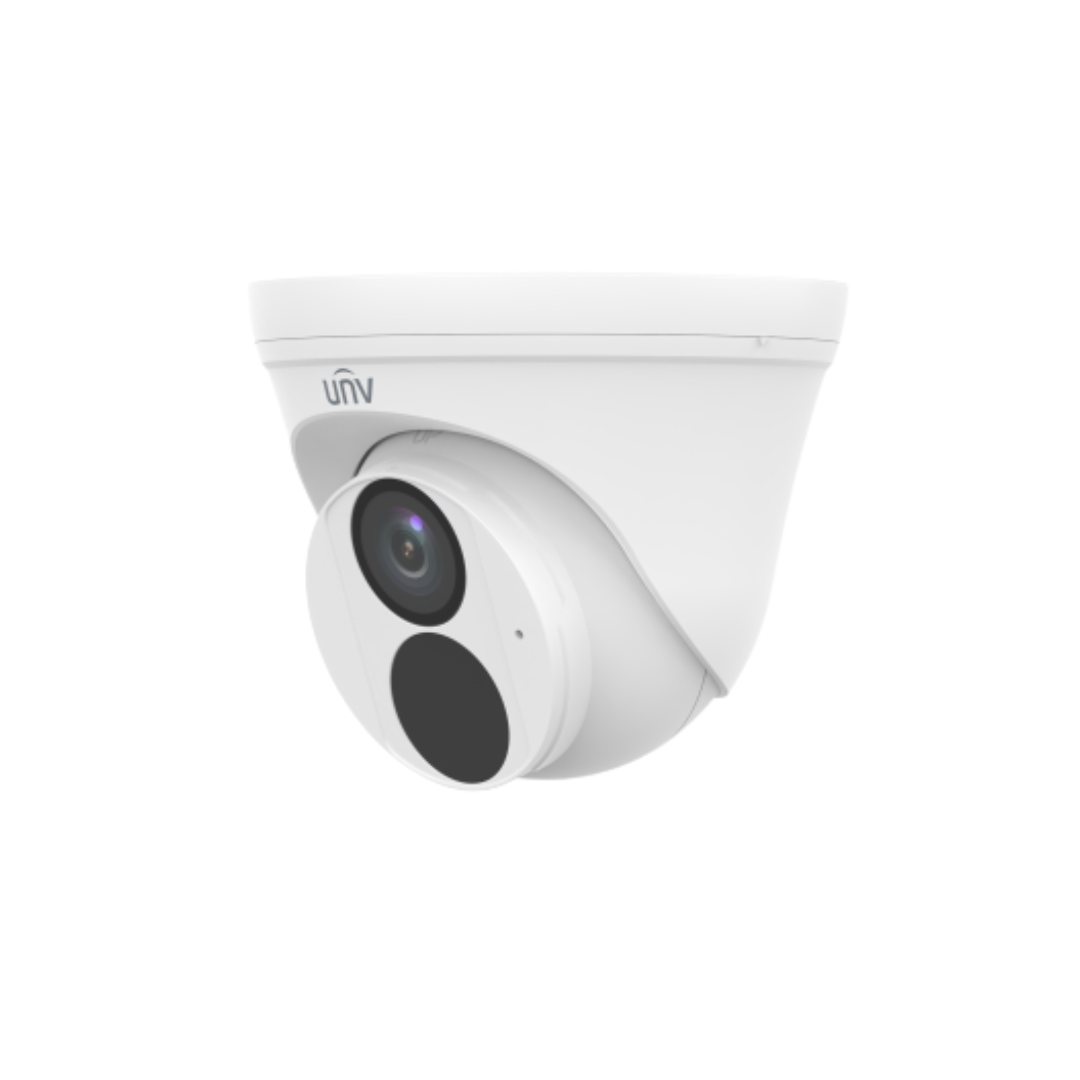

PC3612LB-AF28-A2 |
| Max Resolution |
2 MP |
| Sensor Size |
1/3.0" CMOS |
| Minimum Illumination |
Color: 0.01 lux (F2.0, AGC ON), 0 lux (Illuminator ON) |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle |
Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| S/N Ratio |
>52 dB |
| WDR |
DWDR |
| Lens |
Focal Length: 2.8 mm / 4.0 mm | Iris Type: Fixed | F2.0 |
| Field of View |
H: 99.5° / 77.1° | V: 56.5° / 42.8° | D: 114.4° / 88.2° |
| DORI Distance |
Detect: 46.7 m / 66.7 m | Observe: 18.7 m / 26.7 m | Recognize: 9.3 m / 13.3 m | Identify: 4.7 m / 6.7 m |
| Illuminator |
IR, 30 m (98.4 ft), 850 nm | Auto/Manual |
| Video Compression |
Ultra 265, H.265, H.264 | H.264 Profiles: Baseline, Main, High |
| Frame Rate |
Main: 1080P/720P max 30 fps | Sub: 640×360/2CIF/CIF max 30 fps |
| Video Bit Rate |
128 Kbps to 6144 Kbps |
| U-code |
Support |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Support |
| Video Stream |
Dual streams |
| White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal, Flip vertical, Flip horizontal, 180° |
| HLC/BLC |
Support |
| Defog |
Digital defog |
| Audio |
Built-in Mic | G.711U/G.711A, 64 Kbps |
| Network |
1 × RJ45 10 M/100 M Base-TX Ethernet | Protocols: IPv4, TCP, UDP, DHCP, RTP, RTSP, RTMP, HTTP, ONVIF, etc. |
| Users |
Up to 32 users, 2 levels: admin & common |
| Power |
DC 12 V±25%, PoE (IEEE 802.3af), Max 3.9 W |
| Dimensions |
Ø118 mm × 95 mm (Ø4.6" × 3.8") (Ø × H) |
| Weight |
0.25 kg (0.55 lb) |
| Material |
Graphene + Plastic |
| Environment |
Working: -30 ℃ to 60 ℃, Humidity ≤ 95% RH | Storage: -30 ℃ to 60 ℃, Humidity ≤ 95% RH |
| Surge Protection |
4 KV |
| Web Client Language |
English |
| Ingress Protection |
IP67 |
| Certification |
EMC: CE-EMC, FCC | Safety: CE-LVD | Environment: CE-RoHS, WEEE |
