| Brand |
UNV |
| Model |

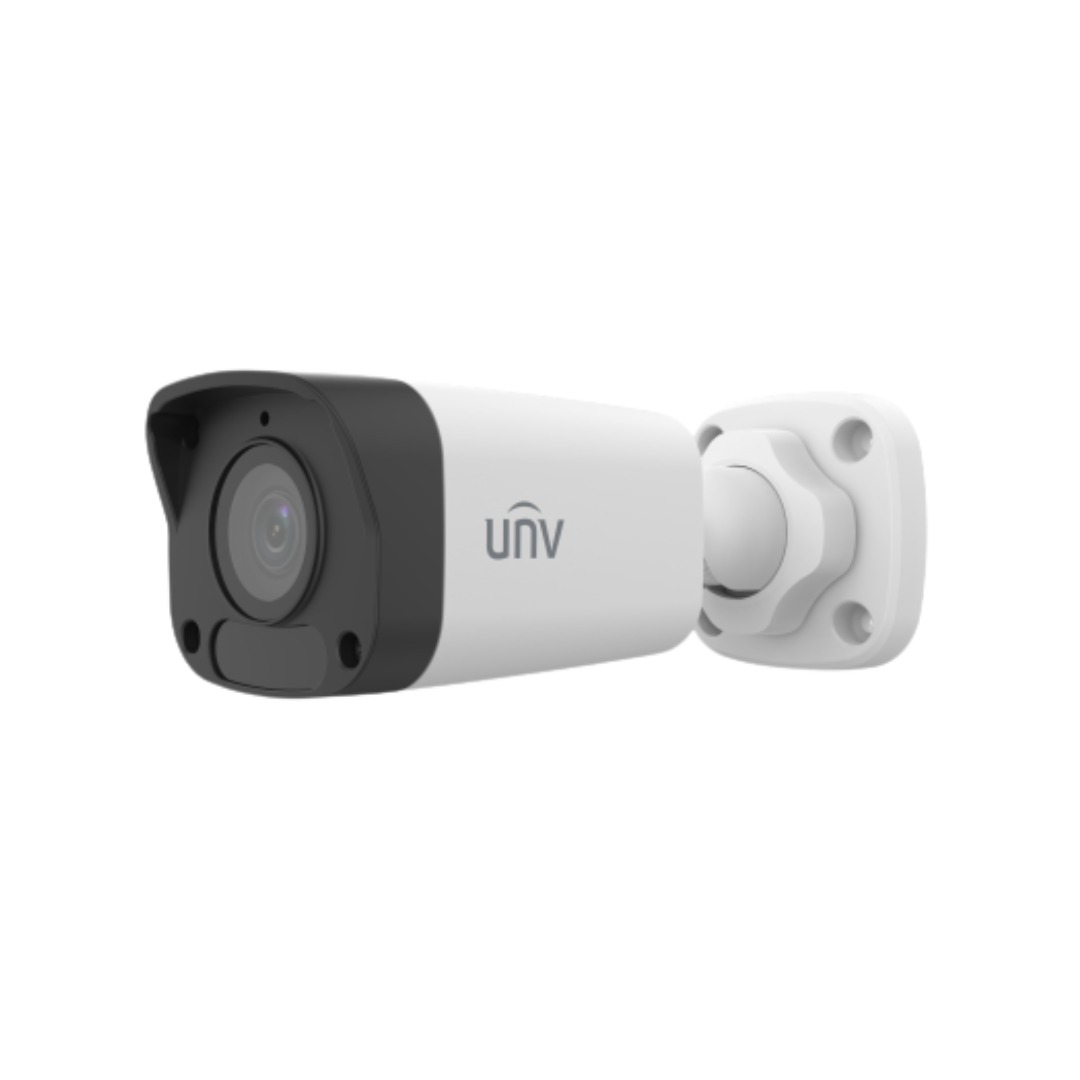

IPC322LB-ASF40K-A2 |
| Max Resolution |
4 MP |
| Sensor Size |
1/3.0" CMOS |
| Minimum Illumination |
Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N Ratio |
>52 dB |
| WDR |
DWDR |
| Lens |
Focal Length: 4.0 mm | Iris Type: Fixed |
| Field of View |
H: 73.4° | V: 40.4° | D: 79.5° |
| DORI Distance |
Detect: 90 m | Observe: 36 m | Recognize: 18 m | Identify: 9 m |
| Illuminator |
IR, 30 m (98.4 ft), 850 nm | Auto/Manual |
| Video Compression |
Ultra 265, H.265, H.264 | H.264 Profiles: Baseline, Main, High |
| Frame Rate |
Main Stream: 4 MP max 25 fps; 3 MP max 30 fps; 1080P max 30 fps | Sub Stream: 640×360, 2CIF, CIF max 30 fps |
| Audio |
Built-in Mic | G.711U/G.711A, 64 Kbps |
| Storage |
Edge Storage: N/A |
| Network |
1 × RJ45 10 M/100 M Base-TX Ethernet | Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS |
| Power |
DC 12 V±25%, PoE (IEEE 802.3af) | Max 3.9 W |
| Dimensions |
157.5 × 62.5 × 62.7 mm (6.2" × 2.5" × 2.5") |
| Weight |
0.19 kg (0.42 lb) |
| Material |
Graphene + Plastic |
| Working Environment |
-30 ℃ to 60 ℃, Humidity ≤ 95% RH |
| Storage Environment |
-30 ℃ to 60 ℃, Humidity ≤ 95% RH |
| Surge Protection |
4 KV |
| Reset Button |
N/A |
| Protection |
IP67 | IK10 |
| Certification |
CE-EMC, FCC, CE-LVD, UL/CUL, CE-RoHS, WEEE |
